CONFAST®
7/8" x 8" Galvanized Wedge Anchor, 5/Box
- SKU:
- WAG788
- UPC:
- 820274003534
- Availability:
- In Stock, Ships Today!
Description
Products Features
- HOT-DIPPED GALVANIZED: Helps prevent rusting in moist environments; lower maintenance
- AVAILABLE IN DIAMETERS FROM 3/8" TO 1-1/4": Ensures proper diameter for any application; versatile
- EXCEPTIONAL PERFORMANCE: Consistent holding values provides peace of mind
- STAINLESS STEEL CLIP: Ensures long life
- STAMPED WITH LENGTH I.D.: Provides easy inspection
Products specifications
| Bit Size | 7/8" |
| Box Qty | 5 |
| Minimum Embedment | 3-7/8" |
| Wrench Size For Nut | 1-5/16" |
| Primary | Concrete only |
| Thread Type | 7/8" - 9 |
| Minimum Edge Distance | 4-3/8" |
| Maximum Fixture Thickness | 3-1/4" |
| Minimum Fixture Hole Diameter (In Place) | 1-1/8" |
| Minimum Fixture Hole Diameter (Hole Spotted) | 7/8" |
| Length ID Code | N |
| Brand Name | CONFAST® |
| Minimum Spacing | 8-3/4" |
| Maximum Torque | 200 - 250 ft./lbs. |
| Thread Length | 4" |
| 2000 PSI Concrete - Pull-Out (lbs.) * | 6294 |
| 2000 PSI Concrete - Shear (lbs.) * | 13687 |
| Length Measurement | End to End |
| Diameter | 7/8" |
| Length | 8" |
| Material | Hot-Dipped Galvanized |
| Environment | Damp |
| Type | Male |
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Application Video
Installation Video
Installing a 7/8" (eight inches) x 8" (eight inches) Hot-Dipped Galvanized Wedge Anchor - Drill a 7/8" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
- Drill the hole a 1/2" deeper than the anchor will penetrate the concrete, making sure the minimum embedment requirements of 3-7/8" is met.
- The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 7/8" (eight inches) x 8" (eight inches) Hot-Dipped Galvanized Wedge Anchor is 1-1/8".
- Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
- Put the nut and washer on the 7/8" (eight inches) x 8" (eight inches) Hot-Dipped Galvanized Wedge Anchor, making sure the nut is on the last threads; this will protect the threads from damage when the wedge anchor is hammered into the hole and into the concrete.
- Insert the anchor through the hole in the fixture and into the hole in the base material.
- This should be a very tight fit. Then use a hammer to complete the installation until the nut and washer are tight against the fixture. It is important that the threads go below the surface of either the base material or the fixture.
- Turn the nut clockwise on the anchor until finger tight.
- Using a 1-5/16" wrench, turn the nut 3 to 4 times until snug or until the proper torque value of 200 - 250 ft./lbs. is reached.
- Always use proper personal protective equipment per manufacturer's and OSHA instructions.

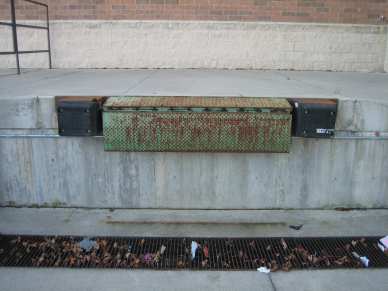

Application Photos
Additional Information
Bit Size: |
7/8" |
Minimum Embedment: |
3-7/8" |
Thread Length: |
4" |
Primary: |
Concrete only |
Environment: |
Damp |
Thread Type: |
7/8" - 9 |
2000 PSI Concrete - Pull-Out (lbs.) *: |
6294 |
2000 PSI Concrete - Shear (lbs.) *: |
13687 |
Type: |
Male |
Diameter: |
7/8" |
Length: |
8" |
Material: |
Galvanized |
Box Qty: |
5 |
Minimum Spacing: |
8-3/4" |
Minimum Edge Distance: |
4-3/8" |
Maximum Fixture Thickness: |
3-1/4" |
Minimum Fixture Hole Diameter (In Place): |
1-1/8" |
Minimum Fixture Hole Diameter (Hole Spotted): |
7/8" |
Length ID Code: |
N |
Maximum Torque: |
200 - 250 ft./lbs. |
Wrench Size For Nut: |
1-5/16" |
Length Measurement: |
End to End |
Brand Name: |
CONFAST |
