ITW/RedHead®
3/8" x 1-3/4" Large Diameter Tapcon 410 Stainless Steel SLDT-3816, 50/Box
(No reviews yet)
Write a Review
- SKU:
- CSHS38134;T
- UPC:
- 662520085778
- MPN:
- SLDT-3816
- Availability:
- Vendor Discontinue, please see Alternatives
Description
Products Features
- EASY TO INSTALL: Fast, secure installation
- EASY TO REMOVE: Simply turn clockwise and back the screw out of the hole
- ONE PIECE DESIGN: No nuts or washers the anchor comes complete
Products specifications
| Bit Size | 5/16" |
| Box Qty | 50 |
| Minimum Embedment | 1-1/2" |
| Wrench Size For Nut | 9/16" |
| Head Type | Hex Washer Serrated |
| Thread Type | Hi-Lo |
| Minimum Edge Distance | 3" |
| Maximum Fixture Thickness | 1/4" |
| Minimum Fixture Hole Diameter (In Place) | 7/16" |
| Minimum Fixture Hole Diameter (Hole Spotted) | 7/16" |
| Length ID Code | A |
| Brand Name | ITW/RedHead |
| Driver Size | 9/16" |
| Minimum Spacing | 6" |
| 2000 PSI Concrete - Pull-Out (lbs.) * | 1336 |
| 2000 PSI Concrete - Shear (lbs.) * | 2108 |
| Length Measurement | Underneath head |
| Diameter | 3/8" |
| Length | 1-3/4" |
| Material | 410 Stainless Steel |
| Environment | Moist |
| Type | Male |
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load

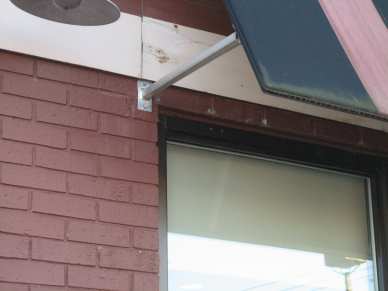

Application Photos
Downloads
Installation/Technical DocumentAdditional Information
Bit Size: |
5/16" |
Minimum Embedment: |
1-1/2" |
Environment: |
Moist |
Material: |
410 Stainless Steel |
Thread Type: |
Hi-Lo |
2000 PSI Concrete - Pull-Out (lbs.) *: |
1336 |
2000 PSI Concrete - Shear (lbs.) *: |
2108 |
Type: |
Male |
Diameter: |
3/8" |
Length: |
1-3/4" |
Box Qty: |
50 |
Minimum Spacing: |
6" |
Minimum Edge Distance: |
3" |
Maximum Fixture Thickness: |
1/4" |
Minimum Fixture Hole Diameter (In Place): |
7/16" |
Minimum Fixture Hole Diameter (Hole Spotted): |
7/16" |
Length ID Code: |
A |
Wrench Size For Nut: |
9/16" |
Head Type: |
Hex Washer Serrated |
Length Measurement: |
Underneath head |
Driver Size: |
9/16" |
Brand Name: |
ITW/RedHead |
