CONFAST®
3/16" x 1-1/4" Hex Head CONFAST® Concrete Screw, 100/Box
(No reviews yet)
Write a Review
- SKU:
- CSH316114
- UPC:
- 820274000243
- Availability:
- In Stock, Ships Today!
Description
Products Features
- COMPLETE LINE: Ensures correct product can be located and purchased for any job
- ALL LENGTHS ARE AVAILABLE: Using the correct length screw ensures quality, secure fastening
- SPECIAL THREADS: Decreases installation torque allowing screw to be installed faster and easier
- TWO DIAMETERS: 3/16" and 1/4" Choice allows for wider variety of fastening applications depending on the hole in the fixture being attached
- BIT INCLUDED IN EACH BOX: Using the correct bit will give you better-holding values
Products specifications
| Bit Size | 5/32" |
| Box Qty | 100 |
| Minimum Embedment | 1" |
| Head Type | Hex Washer |
| Thread Type | High-Low |
| Minimum Edge Distance | 2-1/4" |
| Maximum Fixture Thickness | 0" to 1/4" |
| Minimum Fixture Hole Diameter (In Place) | 1/4" |
| Minimum Fixture Hole Diameter (Hole Spotted) | 1/4" |
| Brand Name | CONFAST® |
| Driver Size | 1/4" |
| Minimum Spacing | 3" |
| Thread Length | 1-1/4" |
| 2000 PSI Concrete - Pull-Out (lbs.) * | 450 |
| 2000 PSI Concrete - Shear (lbs.) * | 540 |
| Length Measurement | Underneath head |
| Diameter | 3/16" |
| Length | 1-1/4" |
| Material | Carbon Steel - Blue Coated |
| Environment | Dry |
| Type | Male |
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Application Video
Installation Video
Installing a 3/16" x 1-1/4" Hex Head CONFAST® Concrete Screw - Drill a 5/32" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
- Drill the hole a 1/2" deeper than the anchor will penetrate the concrete, making sure the minimum embedment requirements of 1" is met.
- The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 3/16" x 1-1/4" Hex Head CONFAST® Concrete Screw is 1/4".
- Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
- Insert the point of the 3/16" x 1-1/4" Hex Head CONFAST® Concrete Screw into the hole. Make sure that the screw being installed will penetrate the base material a minimum of 1" but no deeper than 1-3/4".
- Using a 1/4" nut driver hex driver for the anchor , turn the screw clockwise, applying slight pressure until the head of the screw is snug against the material being fastened.
- Always use proper personal protective equipment per manufacturer's and OSHA instructions.

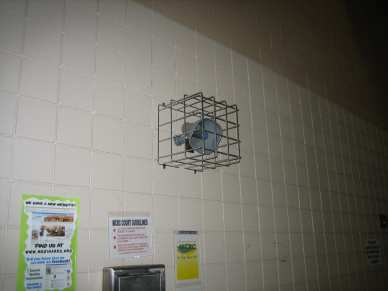

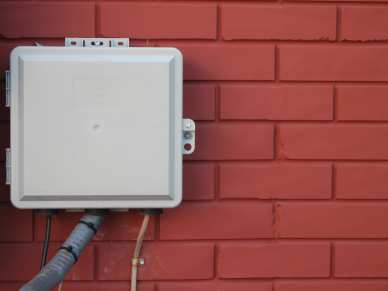

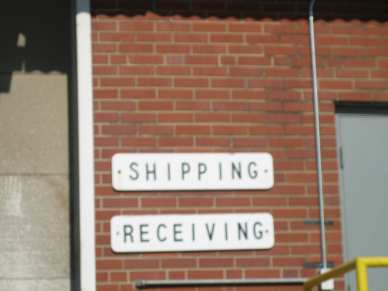

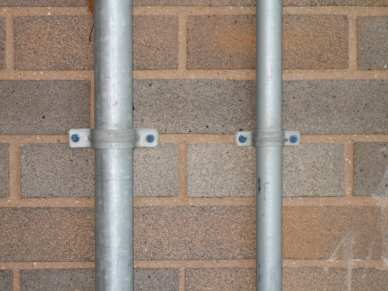

Application Photos
Additional Information
Bit Size: |
5/32" |
Minimum Embedment: |
1" |
Thread Length: |
1-1/4" |
Environment: |
Dry |
Material: |
Carbon Steel - Blue Coated |
Thread Type: |
High-Low |
2000 PSI Concrete - Pull-Out (lbs.) *: |
450 |
2000 PSI Concrete - Shear (lbs.) *: |
540 |
Type: |
Male |
Diameter: |
3/16" |
Length: |
1-1/4" |
Box Qty: |
100 |
Minimum Spacing: |
3" |
Minimum Edge Distance: |
2-1/4" |
Maximum Fixture Thickness: |
0" to 1/4" |
Minimum Fixture Hole Diameter (In Place): |
1/4" |
Minimum Fixture Hole Diameter (Hole Spotted): |
1/4" |
Head Type: |
Hex Washer |
Length Measurement: |
Underneath head |
Driver Size: |
1/4" |
Brand Name: |
CONFAST |
