CONFAST®
1/4" x 3" Wedge Anchor Zinc Plated, 100/Box
- SKU:
- WA143
- UPC:
- 820274002186
- Availability:
- In Stock, Ships Today!
Description
Products Features
- ZINC PLATED: Helps prevent rust in dry environments; dependable application and maintenance
- WIDE RANGE OF SIZES: Ensures correct fastener for effective results
- FOR USE IN CONCRETE ONLY: Provides most consistent holding values; secure application
- PACKAGED WITH NUTS AND WASHER: Fast, quick, complete installation
- HOLE SIZE IS ANCHOR SIZE: Quick and easy installation; simple to order
Products specifications
| Bit Size | 1/4" |
| Box Qty | 100 |
| Minimum Embedment | 1-1/8" |
| Wrench Size For Nut | 7/16" |
| Primary | Concrete only |
| Thread Type | 1/4" - 20 |
| Minimum Edge Distance | 1-1/4" |
| Maximum Fixture Thickness | 1-5/8" |
| Minimum Fixture Hole Diameter (In Place) | 5/16" |
| Minimum Fixture Hole Diameter (Hole Spotted) | 1/4" |
| Length ID Code | B |
| Brand Name | CONFAST® |
| Minimum Spacing | 2-1/2" |
| Maximum Torque | 5 - 10 ft./lbs. |
| Thread Length | 2" |
| 2000 PSI Concrete - Pull-Out (lbs.) * | 877 |
| 2000 PSI Concrete - Shear (lbs.) * | 1082 |
| Length Measurement | End to End |
| Diameter | 1/4" |
| Length | 3" |
| Material | Carbon Steel Zinc Plated |
| Environment | Dry |
| Type | Male |
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Application Video
Installation Video
Installing a 1/4" x 3" (three inches) Wedge Anchor Zinc Plated
- Drill a 1/4" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
- Drill the hole a 1/2" deeper than the anchor will penetrate the concrete, making sure the minimum embedment requirements of 1-1/8" is met.
- The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 1/4" x 3" (three inches) Wedge Anchor Zinc Plated is 5/16".
- Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
- Put the nut and washer on the 1/4" x 3" (three inches) Wedge Anchor Zinc Plated, making sure the nut is on the last threads; this will protect the threads from damage when the wedge anchor is hammered into the hole and into the concrete.
- Insert the anchor through the hole in the fixture and into the hole in the base material.
- This should be a very tight fit. Then use a hammer to complete the installation until the nut and washer are tight against the fixture. It is important that the threads go below the surface of either the base material or the fixture.
- Turn the nut clockwise on the anchor until finger tight.
- Using a 7/16" wrench, turn the nut 3 to 4 times until snug or until the proper torque value of 5 - 10 ft./lbs. is reached.
- Always use proper personal protective equipment per manufacturer's and OSHA instructions.
Product Video

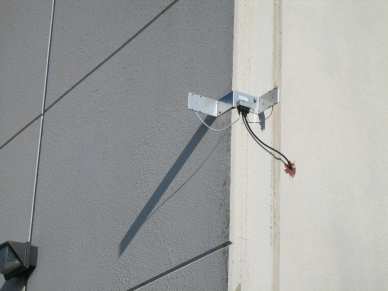

Application Photos
Additional Information
Bit Size: |
1/4" |
Minimum Embedment: |
1-1/8" |
Thread Length: |
2" |
Primary: |
Concrete only |
Environment: |
Dry |
Thread Type: |
1/4" - 20 |
2000 PSI Concrete - Pull-Out (lbs.) *: |
877 |
2000 PSI Concrete - Shear (lbs.) *: |
1082 |
Type: |
Male |
Diameter: |
1/4" |
Length: |
3" |
Material: |
Carbon Steel Zinc Plated |
Box Qty: |
100 |
Minimum Spacing: |
2-1/2" |
Minimum Edge Distance: |
1-1/4" |
Maximum Fixture Thickness: |
1-5/8" |
Minimum Fixture Hole Diameter (In Place): |
5/16" |
Minimum Fixture Hole Diameter (Hole Spotted): |
1/4" |
Length ID Code: |
B |
Maximum Torque: |
5 - 10 ft./lbs. |
Wrench Size For Nut: |
7/16" |
Length Measurement: |
End to End |
Brand Name: |
CONFAST |
