ITW/Buildex®

1/4" x 2-1/4" Tapcon Flat Phillips Carbon Steel Blue Climaseal® Coated PF4-214, 100/Box

(No reviews yet) Write a Review
SKU:
CSF14214;T
UPC:
092097951594
MPN:
PF-4214
Availability:
In Stock, Ships Today!
$32.86

Description

Products Features
  • LOWER ​INSTALLATION ​TORQUE:  Fast ​easy ​installation; ​saves ​time
  • HIGHER ​HOLDING ​VALUES:  Higher ​quality ​installation; ​optimal ​holding strength
  • CLIMASEAL® ​COATING:  Provides ​long-​lasting ​rust ​resistance exterior
Products specifications
Bit Size 3/16"
Box Qty 100
Minimum Embedment 1"
Thread Type Threadform Technology™
Minimum Edge Distance 3"
Maximum Fixture Thickness 1-1/4"
Minimum Fixture Hole Diameter (In Place) 5/16"
Minimum Fixture Hole Diameter (Hole Spotted) 5/16"
Brand Name ITW/Buildex
Driver Size #3
Minimum Spacing 4"
Thread Length 1-3/4"
2000 PSI Concrete - Pull-Out (lbs.) * 750
2000 PSI Concrete - Shear (lbs.) * 900
Length Measurement Overall length including head
Diameter 1/4"
Length 2-1/4"
Material Carbon Steel Blue Climaseal® Coated
Environment Dry to Moist
Type Male
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Application Video

Installation Video
Installing a 1/4" x 2-1/4" Flat Phillips Tapcon® Concrete Screw
  1. Drill a 3/16" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. Drill the hole a 1/2" deeper than the anchor will penetrate the concrete, making sure the minimum embedment requirements of 1" is met.
  3. The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 1/4" x 2-1/4" Flat Phillips Tapcon® Concrete Screw is 5/16".
  4. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  5. Insert the point of the 1/4" x 2-1/4" Flat Phillips Tapcon® Concrete Screw into the hole. Make sure that the screw being installed will penetrate the base material a minimum of 1" but no deeper than 1-3/4".
  6. Using a #3 bit tip Phillips bit tip for the anchor , turn the screw clockwise, applying slight pressure until the head of the screw is snug against the material being fastened.
  7. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Application Photos

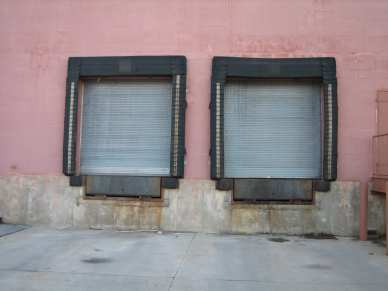

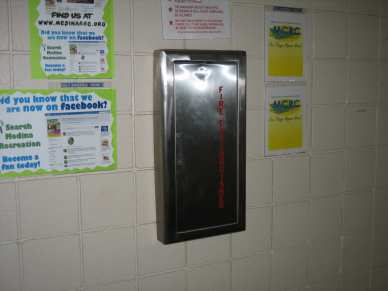

1/4" x 2-1/4" flat tapcon - brick - truck entrance cover 1/4" x 2-1/4" flat tapcon - block - fire extinguisher
Downloads

pdf Installation Document

pdfTechnical Document

View AllClose

Additional Information

Bit Size:
3/16"
Minimum Embedment:
1"
Thread Length:
1-3/4"
Environment:
Dry to Moist
Material:
Carbon Steel Blue Climaseal® Coated
Thread Type:
Threadform Technology™
2000 PSI Concrete - Pull-Out (lbs.) *:
750
2000 PSI Concrete - Shear (lbs.) *:
900
Type:
Male
Diameter:
1/4"
Length:
2-1/4"
Box Qty:
100
Minimum Spacing:
4"
Minimum Edge Distance:
3"
Maximum Fixture Thickness:
1-1/4"
Minimum Fixture Hole Diameter (In Place):
5/16"
Minimum Fixture Hole Diameter (Hole Spotted):
5/16"
Length Measurement:
Overall length including head
Driver Size:
#3
Brand Name:
ITW/Buildex
View AllClose
