CONFAST®

1/2" Lag Shield Anchor Short, 25/Box

(No reviews yet) Write a Review
SKU:
LSS12
UPC:
820274000724
Availability:
In Stock, Ships Today!
$30.54

Description

Products Features
  • EASY TO​ ​INSTALL:  Fast, secure installation
  • EASY TO​ ​REMOVE:  Simply turn clockwise and back the screw out of the hole
  • ONE PIECE DESIGN:  No nuts or washers the anchor comes complete
Products specifications
Bit Size 3/4"
Box Qty 25
Minimum Embedment 2"
Thread Type 1/2" - 13
Minimum Edge Distance 3-3/4"
Minimum Fixture Hole Diameter (In Place) 7/8"
Minimum Fixture Hole Diameter (Hole Spotted) 1/2"
Inside Anchor Diameter-Bolt Diameter 1/2"
Outside Anchor Diameter 3/4"
Internal Thread Length 1-1/8"
Brand Name CONFAST®
Minimum Spacing 7-1/2"
Bolt Length Fixture Thickness + Embedment Depth
2000 PSI Concrete - Pull-Out (lbs.) * 600
Length Measurement End to End
Diameter 1/2"
Length 2"
Material Zamac
Environment Wet
Type Female
* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load
Installation Video
Installing a 1/2" (two inches) Lag Shield Anchor Short
  1. Drill a 3/4" hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. The depth of the hole can be deeper or equal to the minimum embedment depth of 2" which is equal to the length of the anchor .
  3. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  4. Insert the anchor in the hole with the closed end of the lag shield inserted first.
  5. Place the fixture over the 1/2" (two inches) Lag Shield Anchor Short, insert a 1/2" diameter lag screw through the fixture and into the 1/2" (two inches) Lag Shield Anchor Short.
  6. Use a wrench to turn the lag screw clockwise until tight or maximum torque value 20ft./lbs. is reached.
  7. Always use proper personal protective equipment per manufacturer's and OSHA instructions.

Product Video

Application Photos

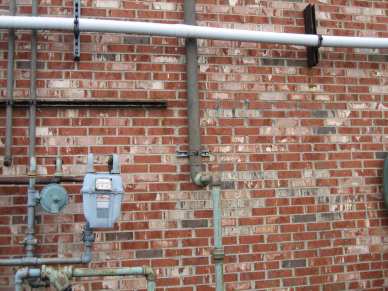

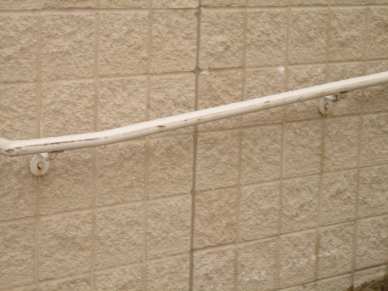

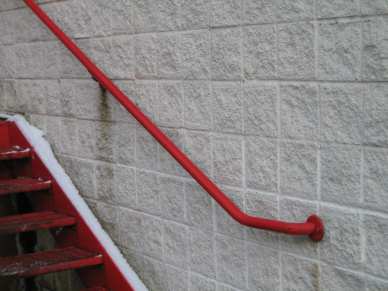

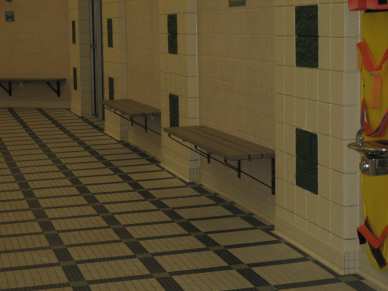

1/2" lag shield short - brick - security camera 1/2" lag shield short - brick - hand railing 1/2" lag shield short - block - bench 1/2" lag shield short - block - railing
View AllClose

Additional Information

Bit Size:
3/4"
Minimum Embedment:
2"
Thread Type:
1/2" - 13
Material:
Zamac
Environment:
Wet
2000 PSI Concrete - Pull-Out (lbs.) *:
600
Type:
Female
Diameter:
1/2"
Length:
2"
Box Qty:
25
Minimum Spacing:
7-1/2"
Minimum Edge Distance:
3-3/4"
Minimum Fixture Hole Diameter (In Place):
7/8"
Minimum Fixture Hole Diameter (Hole Spotted):
1/2"
Inside Anchor Diameter-Bolt Diameter:
1/2"
Outside Anchor Diameter:
3/4"
Internal Thread Length:
1-1/8"
Length Measurement:
End to End
Bolt Length:
Fixture Thickness + Embedment Depth
Brand Name:
CONFAST
View AllClose
